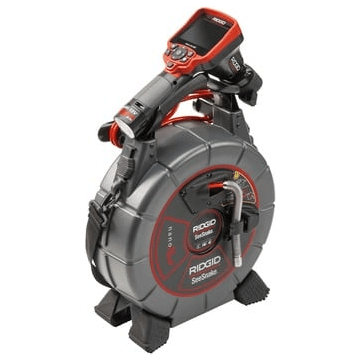

Ridgid SeeSnake® microDRAIN® Video Inspection System / Camera Reel
1” (25 mm) capacity up to 85' (25 m). Passes 90° bends in most 1 3/16” (30 mm) lines.
The nanoReel® system opens up new possibilities in long run small diameter inspection needs. Applications where only bore scopes could reach can now be inspected using the nanoReel® system. Boiler tubes, supply lines, sprinkler systems, and a wide array of specialty applications can be inspected using the nanoReel® system.
- Small diameter and tight turn radius camera allows lines up to 85' (25 m) to be inspected with tight turns in 1" (25 mm) lines
- Lightweight and compact unit allows for easy transport and efficient storage.
- Interchangeable drums let you change out the inner drum depending on the application.
Interchangeable Drums (sold separately)
- L100/L100C - 1 1⁄2" to 5" (40 - 125 mm) lines with a stiffer push cable allowing you to inspect lines up to 100' (30 m)
- D30 and D65S - Small diameter with tight turns, 1 1⁄2" to 4" (40 - 100 mm) P-traps, toilet traps, pool lines up to 65' (20 m)
- N85S - Ultra small diameter lines 1" to 2" (25 - 50 mm) with tight turns for specialized applications
Specifications
| Camera Head | 0.62 (15.5 mm) |
| Cable Length | 85' (25 m) |
| Cable Diameter | 0.25 (6.3 mm) |
| Line Capacity | Line Capacity | 1” to 2” (25 mm to 50 mm) |
| Weight | 9.5 lbs. (4,1 kg) |
| Size | Length 13.25" (33.7 cm), Width 6.6" (16.8 cm), Height 17.5" (44.5 cm) |
| Resolution | 656 x 492 |
| Ball Guide | 2 included |
| Sonde | 512 Hz |
| Counter | Not available |
*The nanoReel® will traverse a 1 in [25 mm] straight pipe, but its ability to go past 90‑degree turns will depend on the material and construction of individual pipes and joints. Test the material you intend to inspect to ensure the camera can pass through turns successfully. Some fittings in small diameter joints will allow passage of the camera in only one direction.
|
CATALOG NUMBER
|
DESCRIPTION
|
Price
|
| 40818 | nanoReel® N85S / micro CA-350 System NTSC 115V | 361,350.00 |
| 40008 | nanoReel® N85S (SeeSnake) NTSC | 317,650.00 |
Standard Equipment
|
CATALOG NUMBER
|
DESCRIPTION
|
Price
|
| 3788 | micro CA-300 Inspection Camera (115V | 37,100.00 |
| 40008 | nanoReel® N85S (CA-350) NTSC | 320,850.00 |
Accessories
|
CATALOG NUMBER
|
DESCRIPTION
|
Price
|
| 33108 | Interconnect Cable for SeeSnake® Monitor | 17,850.00 |
| 33113 | Interconnect Cable for CA-350 Monitor | 23,800.00 |
