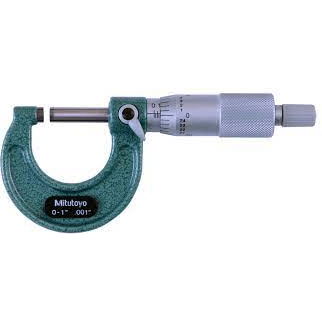

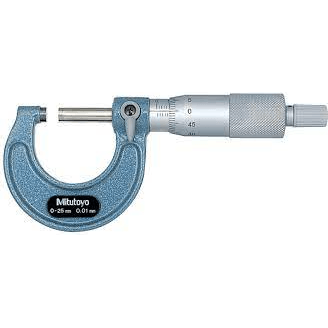

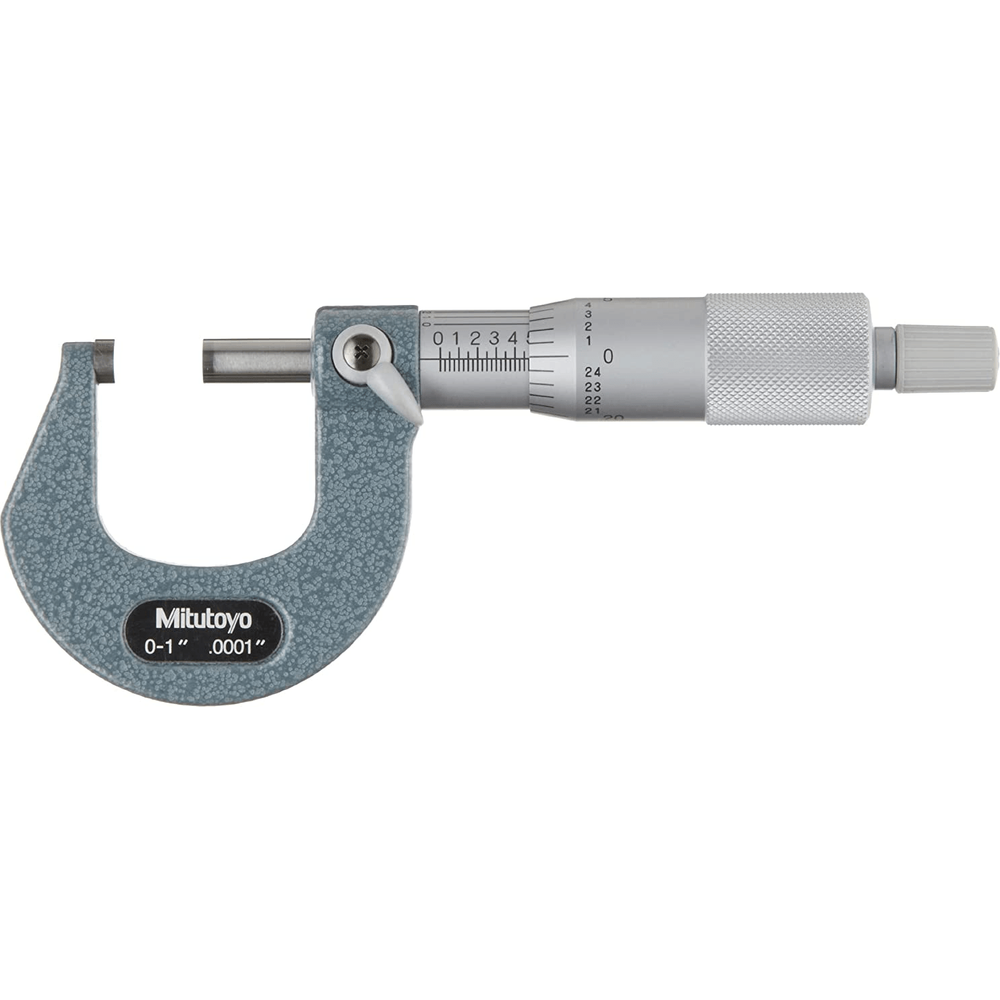

Precision is our ProfessionMitutoyo Outside Micrometer, Series 103
- Hammertone, baked-enamel-finished
frame. - Ratchet stop for exact repetitive readings.
- With a standard bar except for 0-25mm
model.
Technical Data
- Graduation: 0.01mm, 0.001mm
- Flatness: 0.6 μm for models up to 300mm/12"
- 1μm for models over 300mm/12"
- Parallelism: (2+R/100)μm, R=max, range (mm)
- Measuring faces: Carbide tipped
Technical Data (Inch Model)
- Accuracy: Refer to the list of specifications
- Graduation: .001" or .0001"
- Flatness: .000024” for models up to 12”
- .00004” for models over 12”
- Parallelism: [.00008 + .00004 (L/4)]” L= max range (inch)
- Measuring faces: Carbide tipped
| Code | Remarks | Range | Graduation | Price |
| Metric | ||||
| 103-137 | M110-25 | 0-25mm | 0.01mm | 2,700.00 |
| 103-129 | M120-25 | 0-25mm | 0.001mm | 3,900.00 |
| 103-138 | M110-50 | 25-50mm | 0.01mm | 3,500.00 |
| 103-130 | M120-50 | 25-50mm | 0.001mm | 4,900.00 |
| 103-139-10 | OM-75 | 50-75mm | 0.01mm | 4,300.00 |
| 103-140-10 | OM-100 | 75-100mm | 0.01mm | 4,800.00 |
| 103-141-10 | OM-125 | 100-125mm | 0.01mm | 6,200.00 |
| 103-142-10 | OM-150 | 125-150mm | 0.01mm | 7,500.00 |
| 103-143-10 | OM-175 | 150-175mm | 0.01mm | 8,800.00 |
| 103-144-10 | OM-200 | 175-200mm | 0.01mm | 9,500.00 |
| 103-145-10 | OM-225 | 200-225mm | 0.01mm | 11,200.00 |
| 103-146-10 | OM-250 | 225-250mm | 0.01mm | 11,900.00 |
| 103-147-10 | OM-275 | 250-275mm | 0.01mm | 12,800.00 |
| 103-148-10 | OM-300 | 275-300mm | 0.01mm | 13,400.00 |
| 103-149 | OM-325 | 300-325mm | 0.01mm | 18,100.00 |
| 103-150 | OM-350 | 325-350mm | 0.01mm | 19,800.00 |
| 103-151 | OM-375 | 350-375mm | 0.01mm | 20,100.00 |
| 103-152 | OM-400 | 375-400mm | 0.01mm | 21,300.00 |
| 103-153 | OM-425 | 400-425mm | 0.01mm | 22,900.00 |
| 103-154 | OM-450 | 425-450mm | 0.01mm | 24,400.00 |
| 103-155 | OM-475 | 450-475mm | 0.01mm | 25,900.00 |
| 103-156 | OM-500 | 475-500mm | 0.01mm | 27,400.00 |
| Inches | ||||
| 103-177 | M110-1 | 0-1" | 0.001" | 3,500.00 |
| 103-178 | M110-2 | 1-2" | 0.001" | 5,000.00 |
| 103-179 | OM-3 | 2-3" | 0.001" | 6,100.00 |
| 103-180 | OM-4 | 3-4" | 0.001" | 6,700.00 |
| 103-181 | OM-5 | 4-5" | 0.001" | 8,300.00 |
| 103-182 | OM-6 | 5-6" | 0.001" | 9,100.00 |
| 103-183 | OM-7 | 6-7" | 0.001" | 10,200.00 |
| 103-184 | OM-8 | 7-8" | 0.001" | 11,100.00 |
| 103-185 | OM-9 | 8-9" | 0.001" | 11,800.00 |
| 103-186 | OM-10 | 9-10" | 0.001" | 12,700.00 |
| 103-187 | OM-11 | 10-11" | 0.001" | 13,600.00 |
| 103-188 | OM-12 | 11-12" | 0.001" | 14,300.00 |
| 103-189 | OM-13 | 12-13" | 0.001" | 20,300.00 |
| 103-190 | OM-14 | 13-14" | 0.001" | 20,800.00 |
| 103-191 | OM-15 | 14-15" | 0.001" | 21,400.00 |
| 103-192 | OM-16 | 15-16" | 0.001" | 22,200.00 |
| 103-193 | OM-17 | 16-17" | 0.001" | 23,500.00 |
| 103-194 | OM-18 | 17-18" | 0.001" | 25,100.00 |
| 103-195 | OM-19 | 18-19" | 0.001" | 26,600.00 |
| 103-196 | OM-20 | 19-20" | 0.001" | 28,200.00 |
| 103-197 | OM-21 | 20-21" | 0.001" | 30,100.00 |
| 103-198 | OM-22 | 21-22" | 0.001" | 31,500.00 |
| 103-199 | OM-23 | 22-23" | 0.001" | 32,500.00 |
| 103-200 | OM-24 | 23-24" | 0.001" | 33,500.00 |
| Outside Micrometer Set, Series 103 | ||||
| Code | Model | Range | Graduation | Price |
| Metric | ||||
| 103-927-10 | OMST-75 | 0-75mm(3mikes) | 0.01mm | 14,900.00 |
| 103-913-50 | OMST-150 | 0-150mm(6mikes) | 0.01mm | 38,500.00 |
| 103-915-10 | OMST2-300 | 150-300mm(6mikes) | 0.01mm | 69,200.00 |
| Inches | ||||
| 103-904 | OMST-6 | 0-6"(6mikes) | 0.001" | 46,900.00 |
| 103-907 | OMST-6 | 0-6"(6mikes) | 0.0001" | 43,200.00 |
| 103-905 | OMST-12 | 0-12"(12mikes) | 0.001" | 108,600.00 |
| 103-906 | OMST2-12 | 6-12"(6mikes) | 0.001" | 75,500.00 |
| 103-909 | OMST2-12 | 6-12"(6mikes) | 0.0001" | 70,500.00 |
